Hydro-Clamp with a cylindrical shank
Hydro-clamp for suisse type lathes, such as: STAR, CITIZEN, TORNOS, TSUGAMI, HANWHA, NOMURADS, NEXTURN
h6 Shank tools must be used!
• Wrench is must be ordered separately (Catalogue page 25)
• The inner diameter 8 and 12 can be used with various tools by using the hydro-sleeve ( Catalogue page 24)
• Additional sizes and special designs available on request
The corresponding product catalog is available for download!

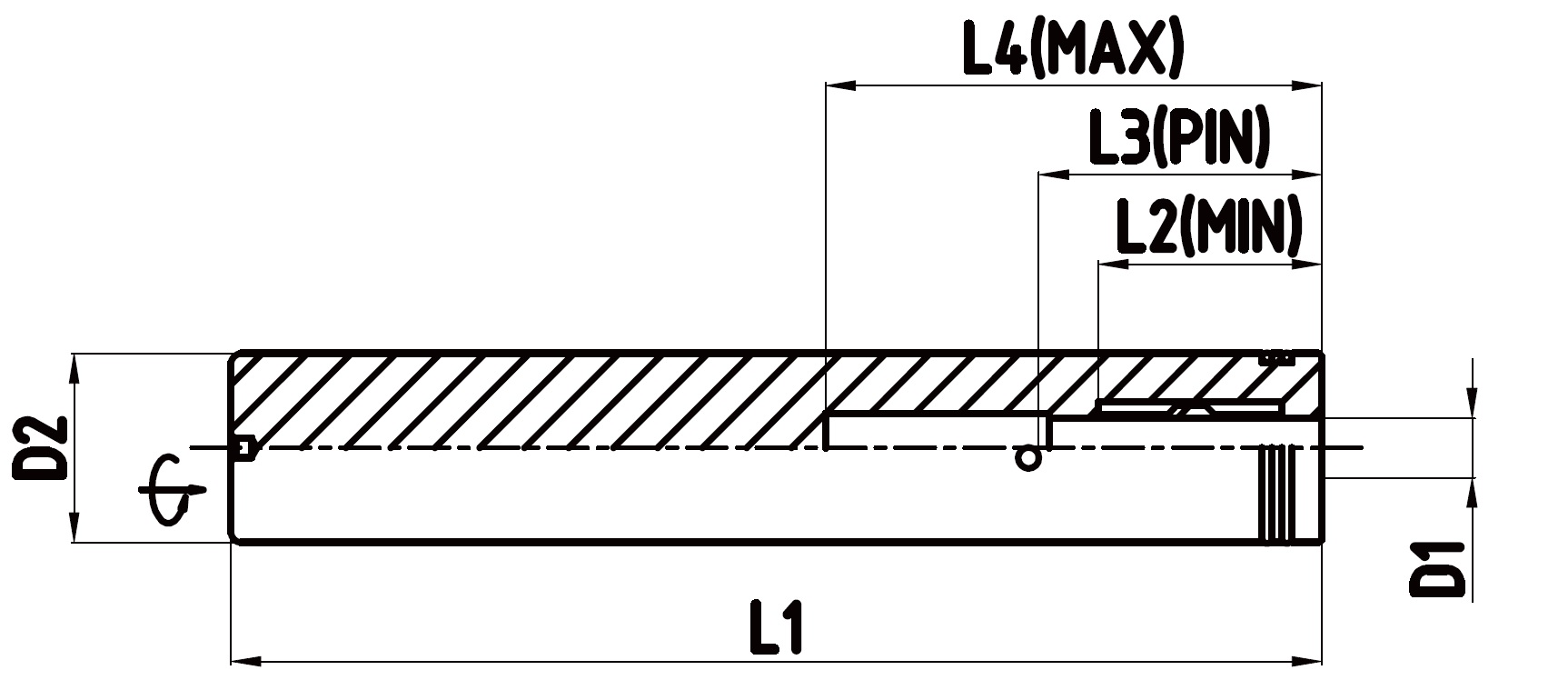

| Product | D1 | D2 | L1 (mm) | L2 (mm) | L3 (mm) | L4 | Spanner | For example suitable for machines brand | for example machine type | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
HC160350 Hydraulic chuck;shank:16,0 shank length:50,0;clamping diameter 3,0
Available at short notice on request
|
3 | 16 | 50.00 | 17.5 | 24.00 | 28.00 | HCTR-3.0 | Tsugami / Tornos | P01/P03 / Micro 7/8 |
|
|
|
HC160390 Hydraulic chuck;shank:16,0 shank length:90,0;clamping diameter 3,0
In stock delivery time 1-2 working days / subject to prior sale
|
3 | 16 | 90.00 | 17.5 | 24.00 | 40 | HCTR-3.0 | Star / Tornos | SR-10J / Swiss Nano Serie |
|
|
|
HC160317550 Hydraulic chuck;shank:16,0 shank length:50,0;clamping diameter 3,175
Available at short notice on request
|
3.175 | 16 | 50.00 | 17.5 | 24.00 | 28.00 | HCTR-3.0 | Tsugami / Tornos | P01/P03 / Micro 7/8 |
|
|
|
HC160317590 Hydraulic chuck;shank:16,0 shank length:90,0;clamping diameter 3,175
Available at short notice on request
|
3.175 | 16 | 90.00 | 17.5 | 24.00 | 40 | HCTR-3.0 | Star / Tornos | SR-10J / Swiss Nano Serie |
|
|
|
HC160450 Hydraulic chuck;shank:16,0 shank length:50,0;clamping diameter 4,0
Available at short notice on request
|
4 | 16 | 50.00 | 21 | 26.00 | 28.00 | HCTR-3.0 | Tsugami / Tornos | P01/P03 / Micro 7/8 |
|
|
|
HC160490 Hydraulic chuck;shank:16,0 shank length:90,0;clamping diameter 4,0
In stock delivery time 1-2 working days / subject to prior sale
|
4 | 16 | 90.00 | 21 | 26.00 | 40 | HCTR-3.0 | Star / Tornos | SR-10J / Swiss Nano Serie |
|
|
|
HC160690 Hydraulic chuck;shank:16,0 shank length:90,0;clamping diameter 6,0
In stock delivery time 1-2 working days / subject to prior sale
|
6 | 16 | 90.00 | 23.00 | 29 | 37 | HCTR-3.0 | Star / Tornos | SR-10J / Swiss Nano Serie |
|
|
|
HC1903110 Hydraulic chuck;shank:19,05 shank length:110,0;clamping diameter 3,0
In stock delivery time 1-2 working days / subject to prior sale
|
3 | 19.05 | 110 | 17.5 | 24.00 | 40 | HCTR-3.0 | Citizen / Nexturn | C/M16/L20 |
|
|
|
HC1904110 Hydraulic chuck;shank:19,05 shank length:110,0;clamping diameter 4,0
In stock delivery time 1-2 working days / subject to prior sale
|
4 | 19.05 | 110 | 21 | 26.00 | 40 | HCTR-3.0 | Citizen / Nexturn | C/M16/L22 |
|
|
|
HC1906110 Hydraulic chuck;shank:19,05 shank length:110,0;clamping diameter 6,0
Available at short notice on request
|
6 | 19.05 | 110 | 23.00 | 29 | 52.00 | HCTR-3.0 | Citizen / Nexturn | C/M16/L24 |
|
|
|
HC1908110 Hydraulic chuck;shank:19,05 shank length:110,0;clamping diameter 8,0
In stock delivery time 1-2 working days / subject to prior sale
|
8 | 19.05 | 110 | 28.00 | 34 | 52.00 | HCTR-3.0 | Citizen / Nexturn | C/M16/L26 |
|
|
|
HC2003110 Hydraulic chuck;shank:20,0 shank length:110,0;clamping diameter 3,0
In stock delivery time 1-2 working days / subject to prior sale
|
3 | 20 | 110 | 17.5 | 24.00 | 40 | HCTR-3.0 | Tsugami / Tornos / Hanwha | BO12/20/S20 / Gamma 20 / SL12H |
|
|
|
HC2004110 Hydraulic chuck;shank:20,0 shank length:110,0;clamping diameter 4,0
In stock delivery time 1-2 working days / subject to prior sale
|
4 | 20 | 110 | 21 | 26.00 | 40 | HCTR-3.0 | Tsugami / Tornos / Hanwha | BO12/20/S20 / Gamma 20 / SL12H |
|
|
|
HC2006110 Hydraulic chuck;shank:20,0 shank length:110,0;clamping diameter 6,0
In stock delivery time 1-2 working days / subject to prior sale
|
6 | 20 | 110 | 23.00 | 29 | 52.00 | HCTR-3.0 | Tsugami / Tornos / Hanwha | BO12/20/S20 / Gamma 20 / SL12H |
|
|
|
HC2008110 Hydraulic chuck;shank:20,0 shank length:110,0;clamping diameter 8,0
In stock delivery time 1-2 working days / subject to prior sale
|
8 | 20 | 110 | 28.00 | 34 | 52.00 | HCTR-3.0 | Tsugami / Tornos / Hanwha | BO12/20/S20 / Gamma 20 / SL12H |
|
