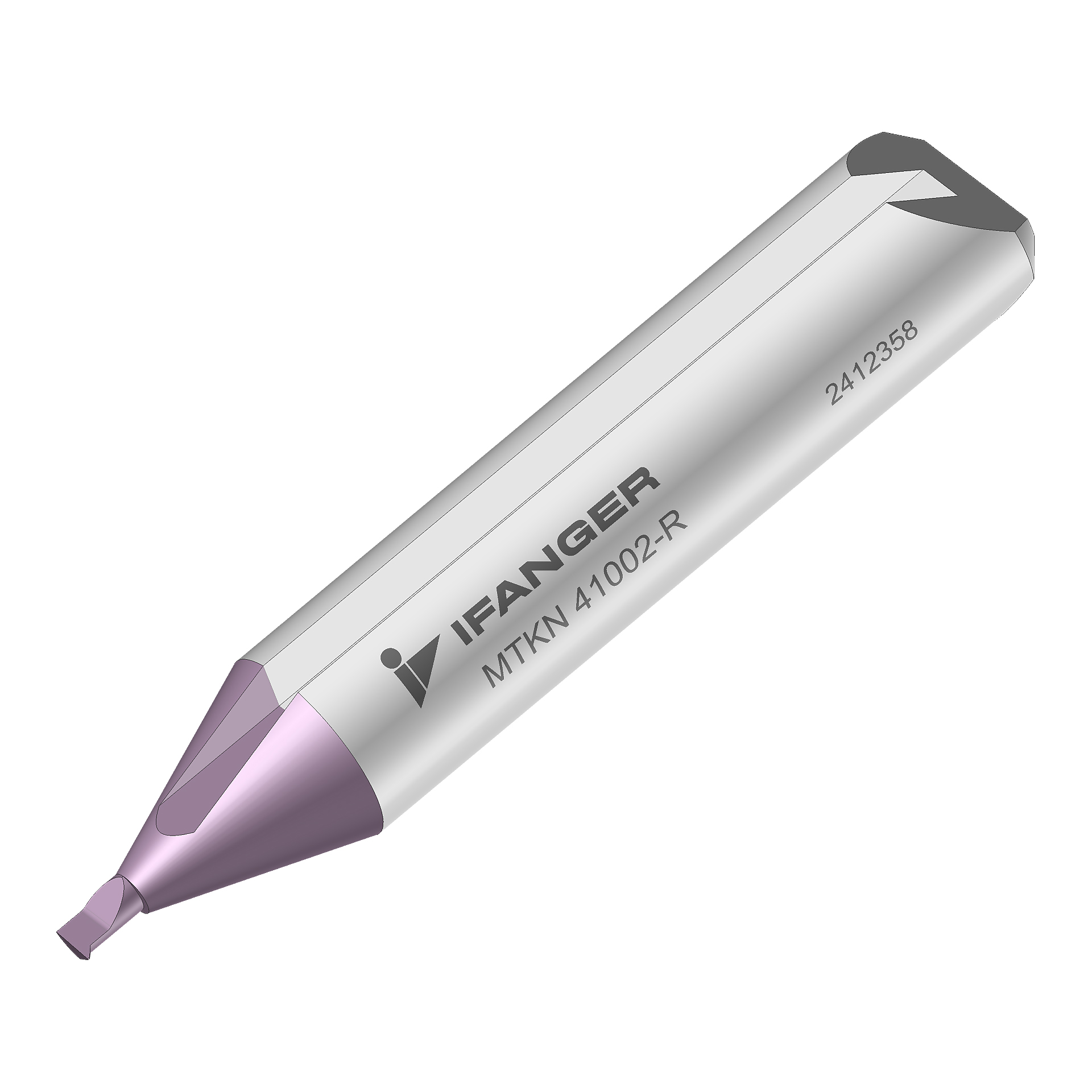

Copying tools 3° / 47° (MTKN)
| Product | ø min. (mm) | øS (mm) | L (mm) | L1 (mm) | L2 (mm) | F (mm) | T | ɣ (°) | B (mm) | Coating | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MTKN40301K10 Copying tool MTKN 40301 K10
Available at short notice on request
|
0.30 | 4 | 26 | 0.60 | 10.00 | 0.15 | 0.05 | 0° | 0.02 | bright |
|
|
|
MTKN40301TIA Copying tool MTKN 40301 TiAlN
Available at short notice on request
|
0.30 | 4 | 26 | 0.60 | 10.00 | 0.15 | 0.05 | 0° | 0.02 | TIALN coated |
|
|
|
MTKN40302K10 Copying tool MTKN 40302 K10
Available at short notice on request
|
0.30 | 4 | 26 | 1.00 | 10.00 | 0.15 | 0.05 | 0° | 0.02 | bright |
|
|
|
MTKN40302TIA Copying tool MTKN 40302 TiAlN
Available at short notice on request
|
0.30 | 4 | 26 | 1.00 | 10.00 | 0.15 | 0.05 | 0° | 0.02 | TIALN coated |
|
|
|
MTKN40401K10 Copying tool MTKN 40401 K10
Available at short notice on request
|
0.40 | 4 | 26 | 0.80 | 10.00 | 0.20 | 0.07 | 0° | 0.02 | bright |
|
|
|
MTKN40401TIA Copying tool MTKN 40401 TiAlN
Available at short notice on request
|
0.40 | 4 | 26 | 0.80 | 10.00 | 0.20 | 0.07 | 0° | 0.02 | TIALN coated |
|
|
|
MTKN40402K10 Copying tool MTKN 40402 K10
Available at short notice on request
|
0.40 | 4 | 26 | 1.30 | 10.00 | 0.20 | 0.07 | 0° | 0.02 | bright |
|
|
|
MTKN40402TIA Copying tool MTKN 40402 TiAlN
Available at short notice on request
|
0.40 | 4 | 26 | 1.30 | 10.00 | 0.20 | 0.07 | 0° | 0.02 | TIALN coated |
|
|
|
MTKN40501K10 Copying tool MTKN 40501 K10
Available at short notice on request
|
0.50 | 4 | 26 | 1.00 | 10.00 | 0.25 | 0.10 | 0° | 0.02 | bright |
|
|
|
MTKN40501TIA Copying tool MTKN 40501 TiAlN
Available at short notice on request
|
0.50 | 4 | 26 | 1.00 | 10.00 | 0.25 | 0.10 | 0° | 0.02 | TIALN coated |
|
|
|
MTKN40502K10 Copying tool MTKN 40502 K10
Available at short notice on request
|
0.50 | 4 | 26 | 1.60 | 10.00 | 0.25 | 0.10 | 0° | 0.02 | bright |
|
|
|
MTKN40502TIA Copying tool MTKN 40502 TiAlN
Available at short notice on request
|
0.50 | 4 | 26 | 1.60 | 10.00 | 0.25 | 0.10 | 0° | 0.02 | TIALN coated |
|
|
|
MTKN40601K10 Copying tool MTKN 40601 K10
Available at short notice on request
|
0.60 | 4 | 26 | 1.20 | 10.00 | 0.30 | 0.12 | 0° | 0.02 | bright |
|
|
|
MTKN40601TIA Copying tool MTKN 40601 TiAlN
Available at short notice on request
|
0.60 | 4 | 26 | 1.20 | 10.00 | 0.30 | 0.12 | 0° | 0.02 | TIALN coated |
|
|
|
MTKN40602K10 Copying tool MTKN 40602 K10
Available at short notice on request
|
0.60 | 4 | 26 | 2.00 | 10.00 | 0.30 | 0.12 | 0° | 0.02 | bright |
|
